Berthoud Raptor Sprayer
The RAPTOR self-propelled sprayers’ design enables you to select a model that is outfitted with practical features tailored for your agricultural needs, ensuring you meet your work productivity goals while using crop protection products efficiently.
Read Product Information
Related Products

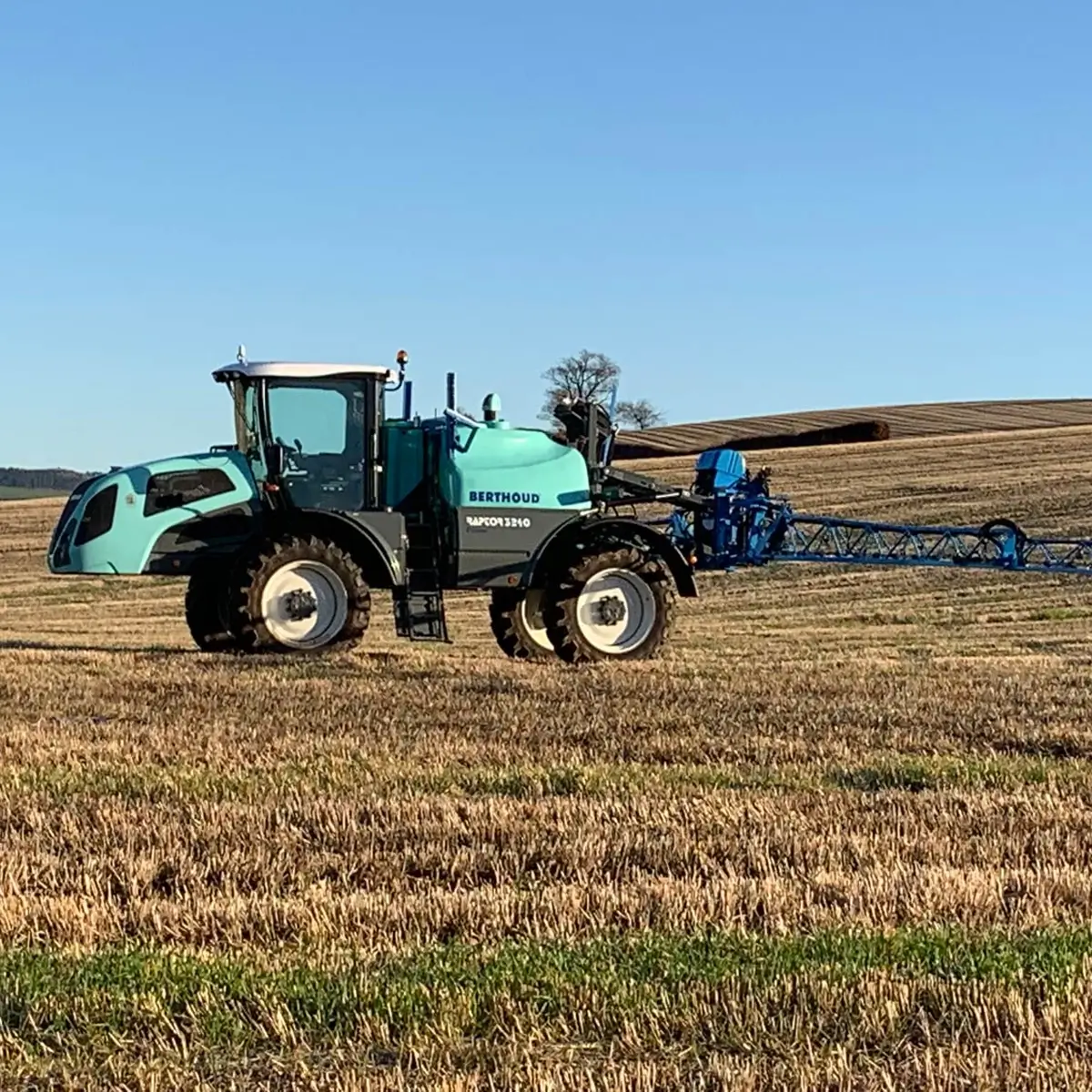

The Berthoud Raptor Sprayer
The Berthoud ‘Raptor’ features tanks that can hold up to a capacity of 5,200 litres and booms available up to 44m. These are specifically designed for self-propelled sprayers with an authorised speed of 40 km/h as standard. The Berthoud ‘Raptor’ combines all the equipment that’s needed to provide you with maximum performance and comfort. There is a wide range of customizable options available for the RAPTOR, so adapt it how it suits you best to farm your crop type.
The Advantages:
- DUALMATIC : designed for a simple and rapid use with its 2 handles controlling all the machine’s 17 functions. A motorised version of DUALELEC is available as an option, so that all the functions can be activated from the control station and the cab
- Mixing hopper : ergonomics combined with power. With a capacity of 25 L, it is fitted with an offset handle for opening an additional valve for rinsing the hopper
- Digital NIVELEC gauge for optimising accuracy – NIVOMATIV gauge available as an option: the solution for preventing overflows (programmable filling volume with automatic stop or audible alarm)
| Tank capacity | 3200 – 4200 – 5200l |
| Booms available | AXIALE: 24, 28, 30, 32, 36 or 38m, EKTAR B2 : 36, 38, 40 or 42m, EKTAR B3 : 36, 38, 39, 40, 42 or 44m |
| Chasis | 3 to 4 pneumatic suspension (depending on model) |
| Type of pump | OMEGA Centrifugal twin turbine 550 L/min |
| Regulations | DPAE EC Tronic regulation system as standard, VT TRONIC and Spraytronic as an option |
| Gauges | NIVELEC and DUALELEC 5 gauge as standard |
| Variable hydraulic track | Available optionally, you have variable track set from 1.80 to 3.05 m (depending on versions), This considerably reduces the impact on crops |
| Hydraulic ground clearance | Available optionally on the 4200 l version – offering a working range from 1.25 m to 1.80 m |
Description
The Berthoud Raptor Sprayer
The Berthoud ‘Raptor’ features tanks that can hold up to a capacity of 5,200 litres and booms available up to 44m. These are specifically designed for self-propelled sprayers with an authorised speed of 40 km/h as standard. The Berthoud ‘Raptor’ combines all the equipment that’s needed to provide you with maximum performance and comfort. There is a wide range of customizable options available for the RAPTOR, so adapt it how it suits you best to farm your crop type.
The Advantages:
- DUALMATIC : designed for a simple and rapid use with its 2 handles controlling all the machine’s 17 functions. A motorised version of DUALELEC is available as an option, so that all the functions can be activated from the control station and the cab
- Mixing hopper : ergonomics combined with power. With a capacity of 25 L, it is fitted with an offset handle for opening an additional valve for rinsing the hopper
- Digital NIVELEC gauge for optimising accuracy – NIVOMATIV gauge available as an option: the solution for preventing overflows (programmable filling volume with automatic stop or audible alarm)
Additional Information
| Tank capacity | 3200 – 4200 – 5200l |
| Booms available | AXIALE: 24, 28, 30, 32, 36 or 38m, EKTAR B2 : 36, 38, 40 or 42m, EKTAR B3 : 36, 38, 39, 40, 42 or 44m |
| Chasis | 3 to 4 pneumatic suspension (depending on model) |
| Type of pump | OMEGA Centrifugal twin turbine 550 L/min |
| Regulations | DPAE EC Tronic regulation system as standard, VT TRONIC and Spraytronic as an option |
| Gauges | NIVELEC and DUALELEC 5 gauge as standard |
| Variable hydraulic track | Available optionally, you have variable track set from 1.80 to 3.05 m (depending on versions), This considerably reduces the impact on crops |
| Hydraulic ground clearance | Available optionally on the 4200 l version – offering a working range from 1.25 m to 1.80 m |
